Install of Redarc BCDC 1220


admin
 Share

Recommended Posts

Over the last few days ive been working on installing the BCDC 1220 into my new patrol after taking it out of my previous Patrol.

The install was a pain in the arse as I first had to remove an old Pirhana Dual battery system (which was a basic isolator rather than sofistocated DC-DC charger like the redarc).

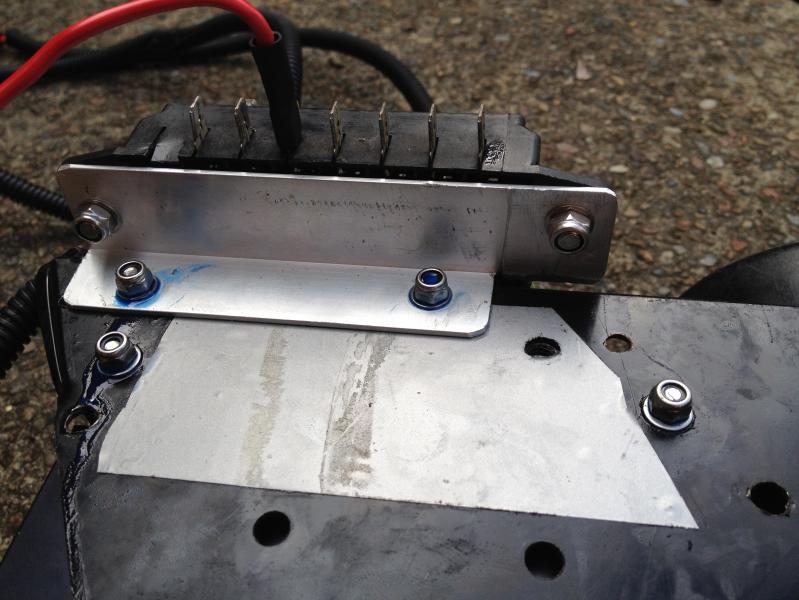

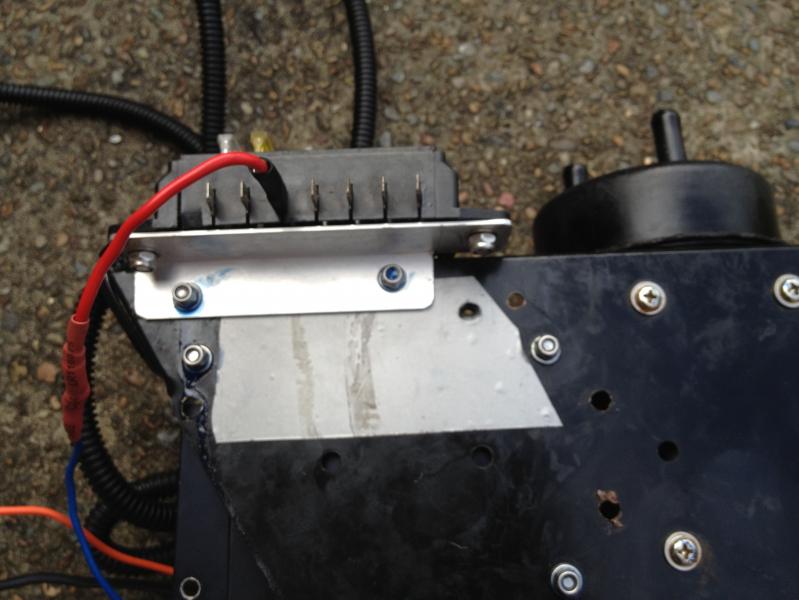

After removing the pirhana I had to mount the redarc and then re mount an existing fuse box. I ended up using a piece of angle aluminium and stainless steel bots/nuts to hold it in place.

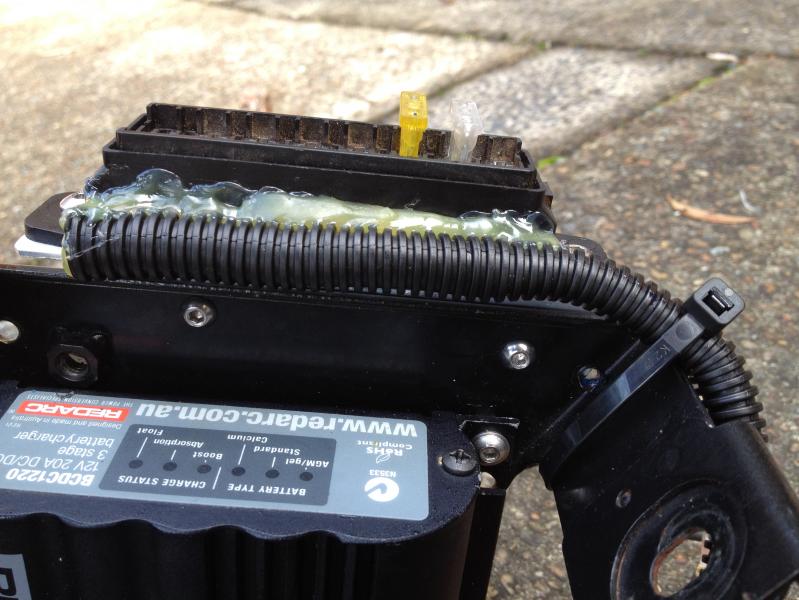

The fuse block has heavy guage wire soldered to each fuse terminal and I covered the whole lot with flexible conduit to insulate it and hot then glued it into place.

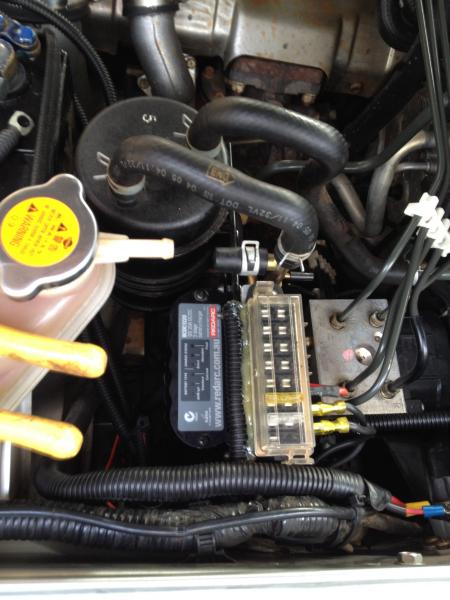

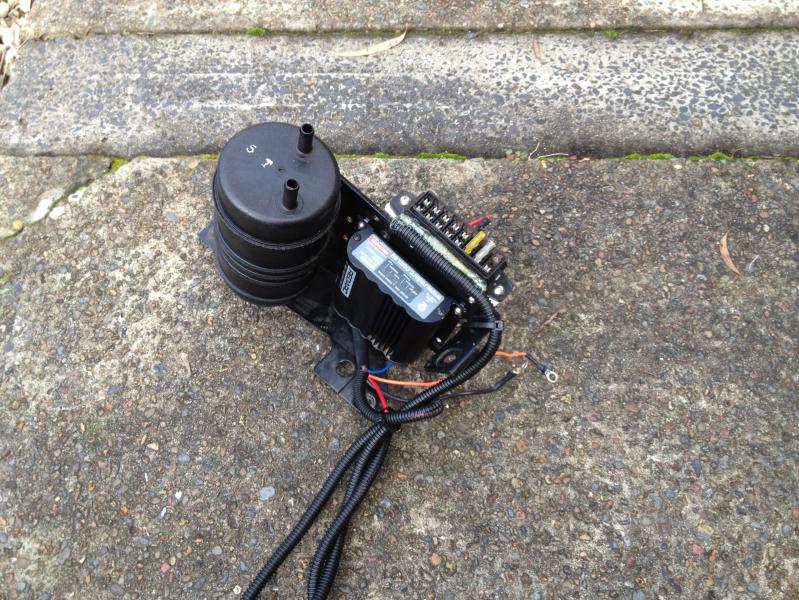

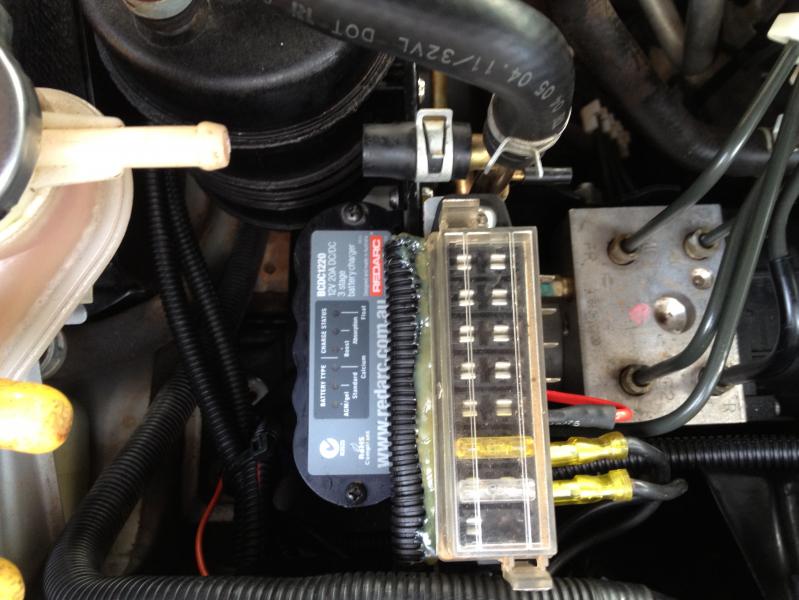

Here are the pics:
